WFBV/WBAV Vertical Dry Pit Clog-less Pumps    Home > Products

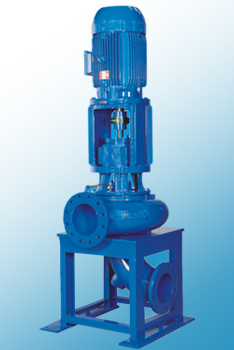

ASPump--WFBV/WBAVASPump--Vertical Dry Pit Clog-less Pumps
  Your request
  • Waste water treatment
  • Vortex/ Two-channel impeller
  • Sludge transfer
  • Tap-water transfer
  • General process
Product catalogASPUMP WFBV catalog Download

Features:

  • Back pull-out design is capable to removal of rotor assembly without disconnecting the suction or discharge pipe line.

  • The bearing lubricated with the oil has steady quality and longer mean time between failures, is suitable for a long time continuously operation.
  • Vertical structure for easy to install and maintenance, the required area for installation is smaller than the horizontal pump to improve space utilization.

Construction:

  • CASING
    Pump and suction pipe are equipped with clean hole to remove foreign body no need to dismantle, foreign body sludge can be easily removal to facilitate regular maintenance and reduce the chances of failure, the pump casing has generous wall thicknesses and smooth internal contours with back pulled out designed.
  • IMPELLER
    1. Vortex impellers are used for all types of contaminated liquids, the advantage is the ability to handle large size particle and long strip body.
    2.Two channel impellers have large flow area and can pass quite large solids, with efficiencies similar those closed type impellers, would be suitable for clean liquids also.
  • WEARING RING
    Only for two channel impeller to seal internal leakage between impeller and casing at pump inlet, wearing ring protects the pump casing and keeping pump performance, needed inspect and maintenance on schedule..
  • SHAFT AND SHAFT SLEEVE
    Shaft sleeve shall be turned and ground to exact dimension with right fitting, high stiffness shaft carry all kinds loading and prevent distortion.
  • BEARING BRACKET
    Heavy-duty designed in brief structure, oil or grease lubricants could be choice.

Accessories:

  • Butt joint flange 1Set.
  • Coupling 1Set
  • Coupling guard
  • Base plate
  • Three-phase motor:208~480V 60/50Hz¡Foverload protection to be provided by user and installed in the control panel.
